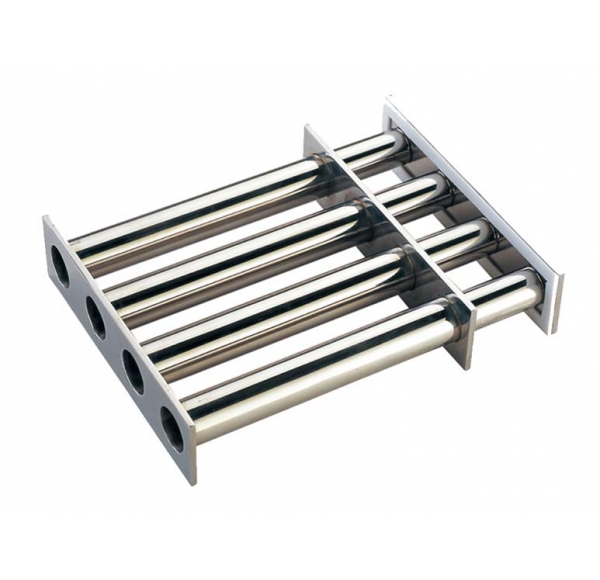

Grate magnets ~10,000–13,000 G
Magnetic tubes in a grate frame for hoppers, chutes and free-fall powders. Ideal for food, plastics and fine dry materials. Easy wipe-clean of captured fines. Food-grade stainless options available.
What are magnetic separators?
Magnetic separators are industrial devices that remove ferrous metal (iron, steel, tramp metal) from powders, granules, liquids or conveyed bulk using permanent magnet fields. Plants choose the housing style — grate, bullet, drawer, pulley or plate — to match flow path, cleanability and contaminant size.

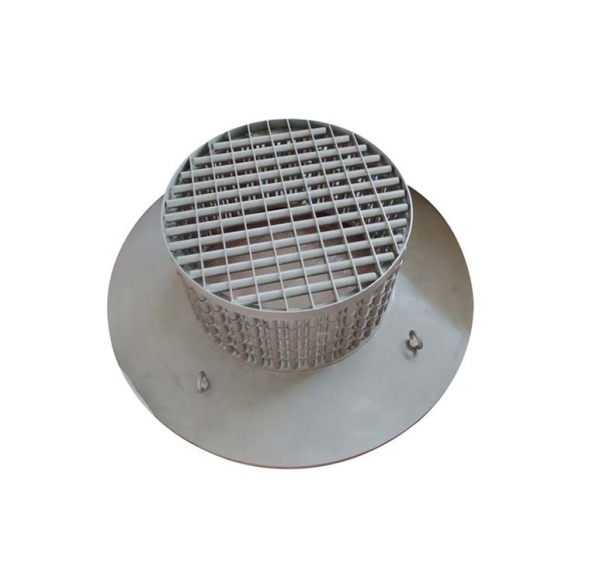

Grate magnet

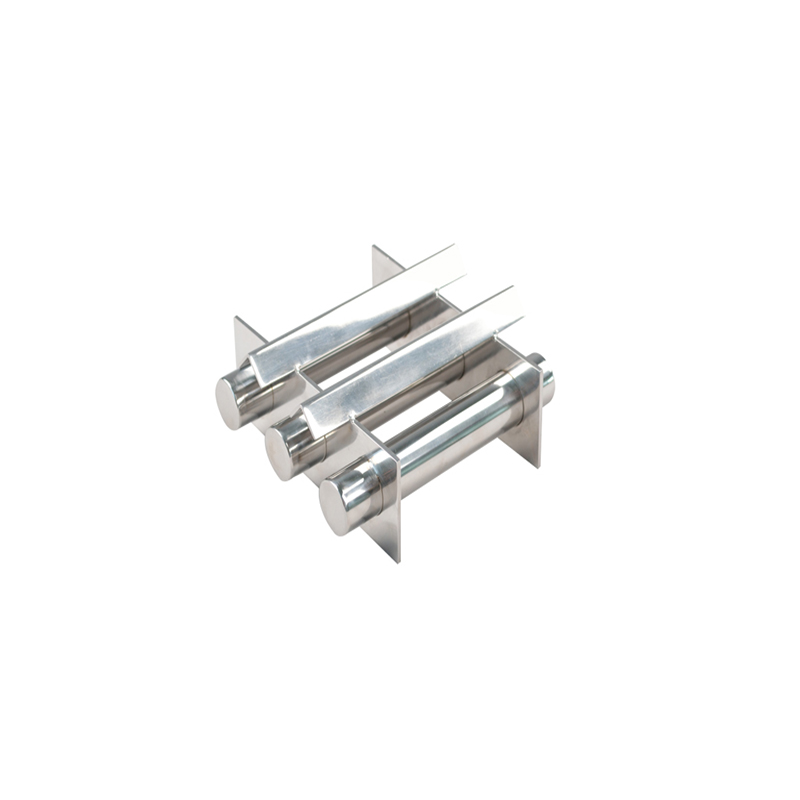

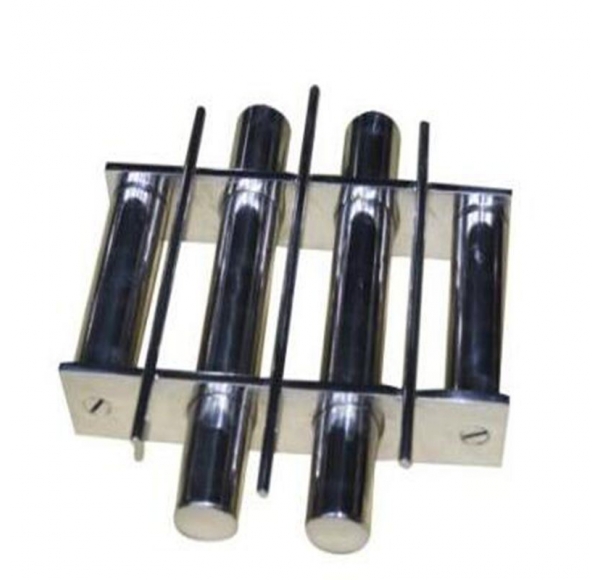

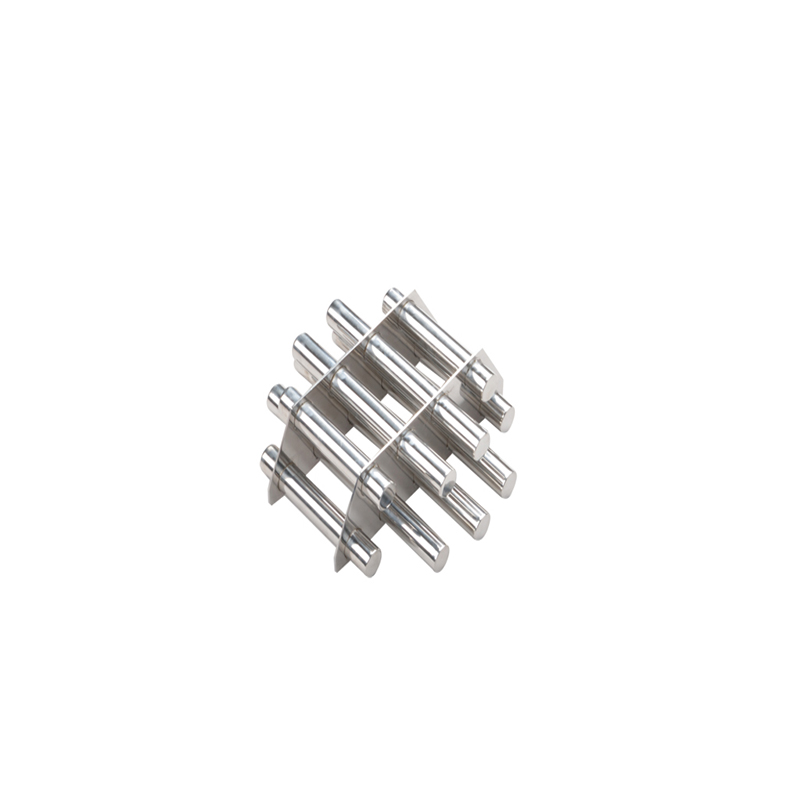

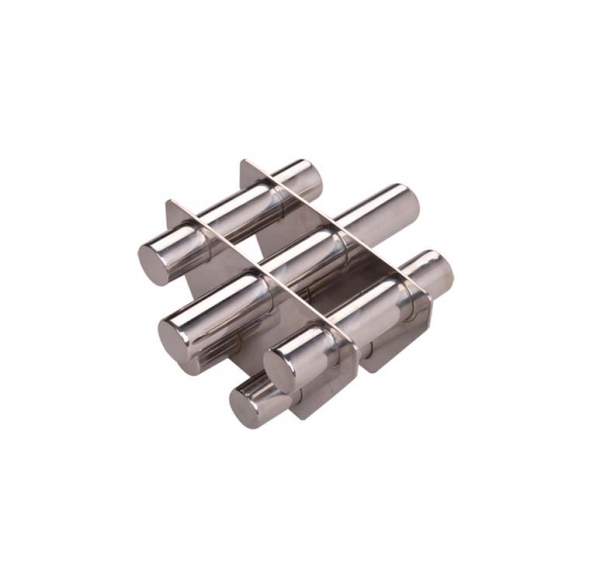

Hopper / round grate
Drawer magnet
Bullet magnet
Plate magnet

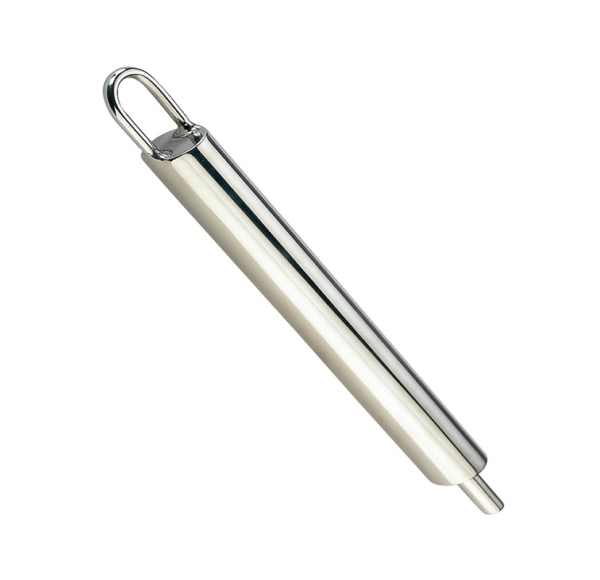

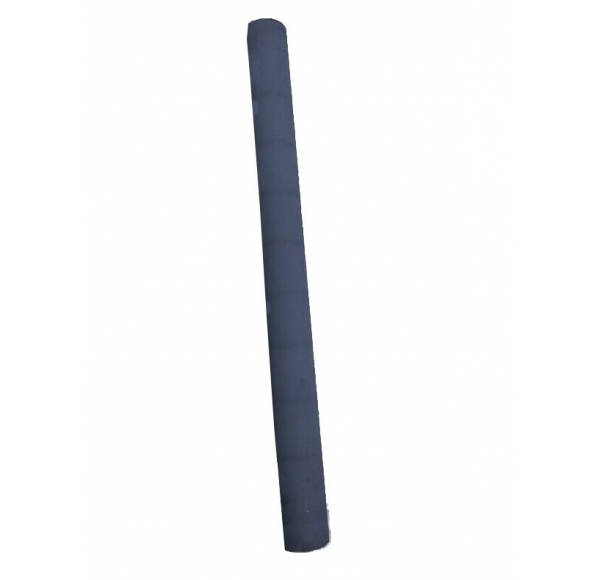

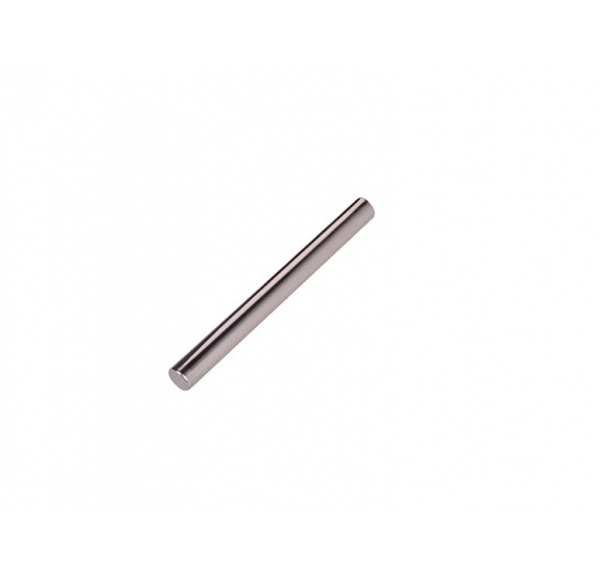

Magnetic bars

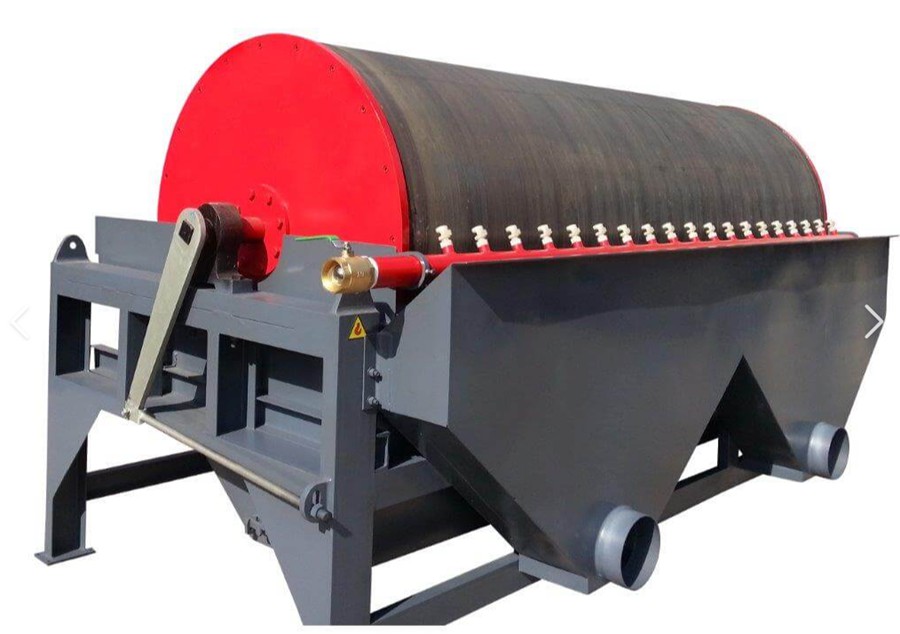

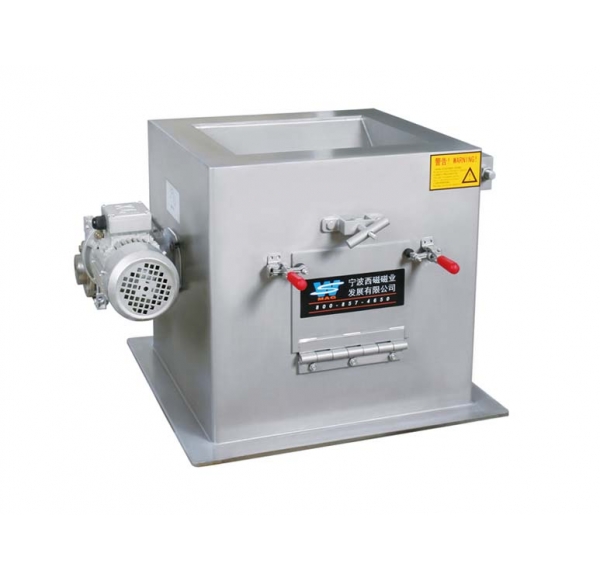

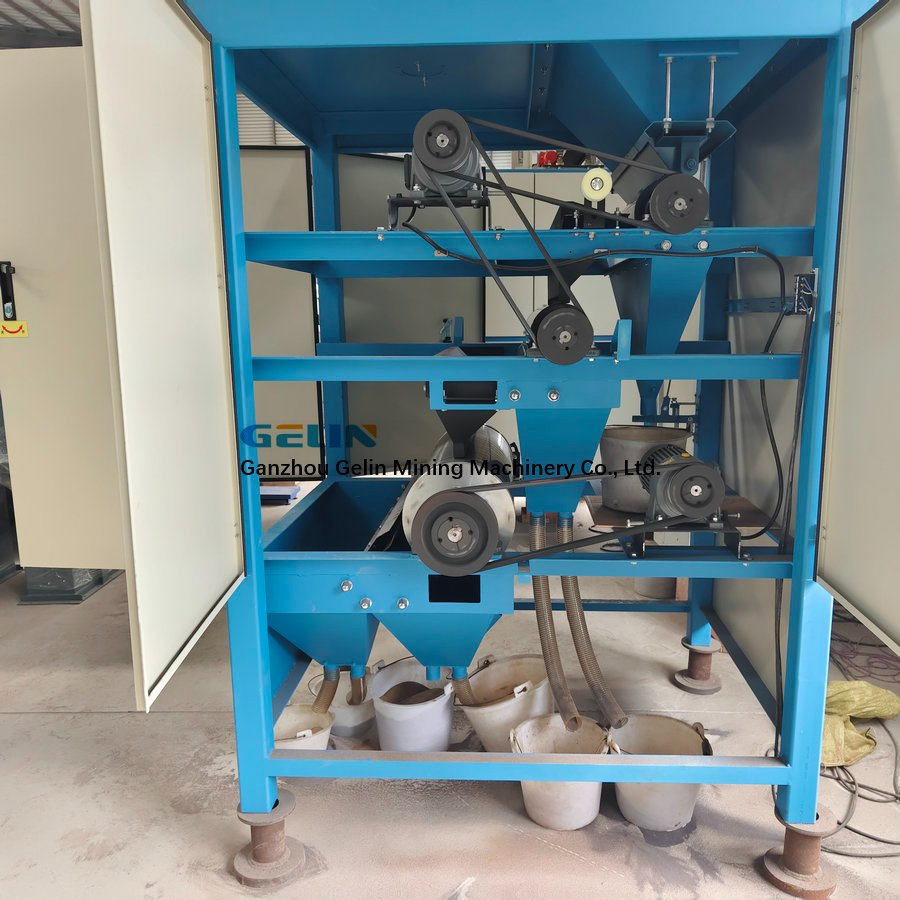

Drum separator
Arrowmatics Magnets supplies these separators from Shah Alam across Malaysia. Typical rare-earth designs operate in the 10,000–13,000 gauss range. We do not publish RM list prices; WhatsApp +60 12-211 2522 for a written quote.
Food-grade grate magnets Malaysia?
Yes. Food processors in Malaysia use stainless food-grade grate and drawer magnets in hoppers, sifters and packing lines to catch fine ferrous before metal detectors or finished goods. Tell us product type, temperature and opening size for the right tube diameter and bar spacing.
Separator types we supply
Pick by process location. Unsure? Send a photo or line sketch on WhatsApp.

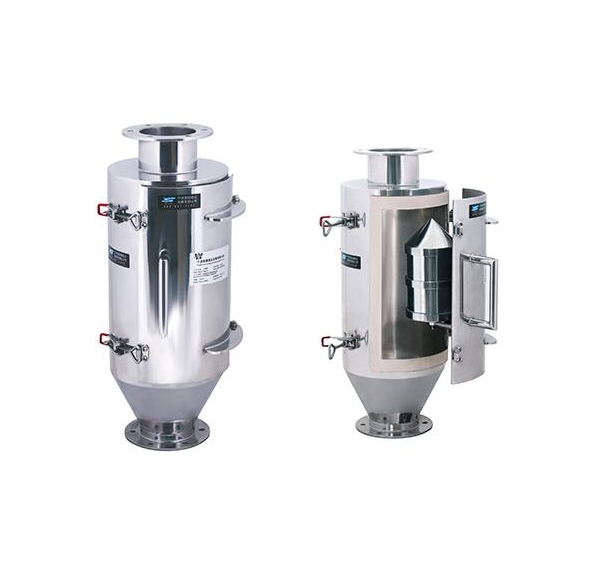

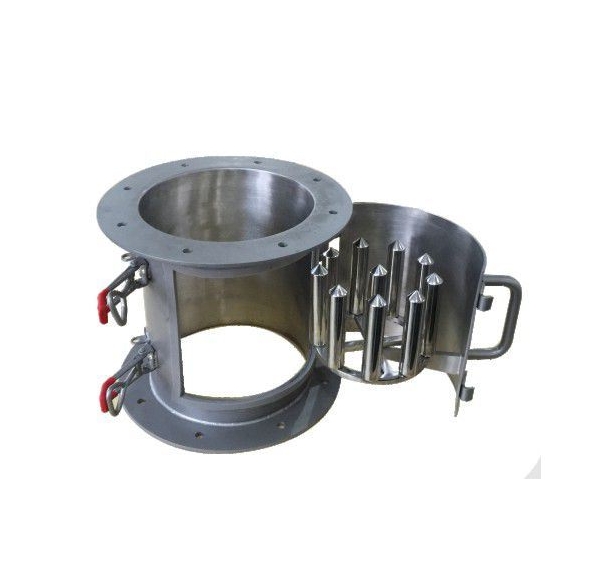

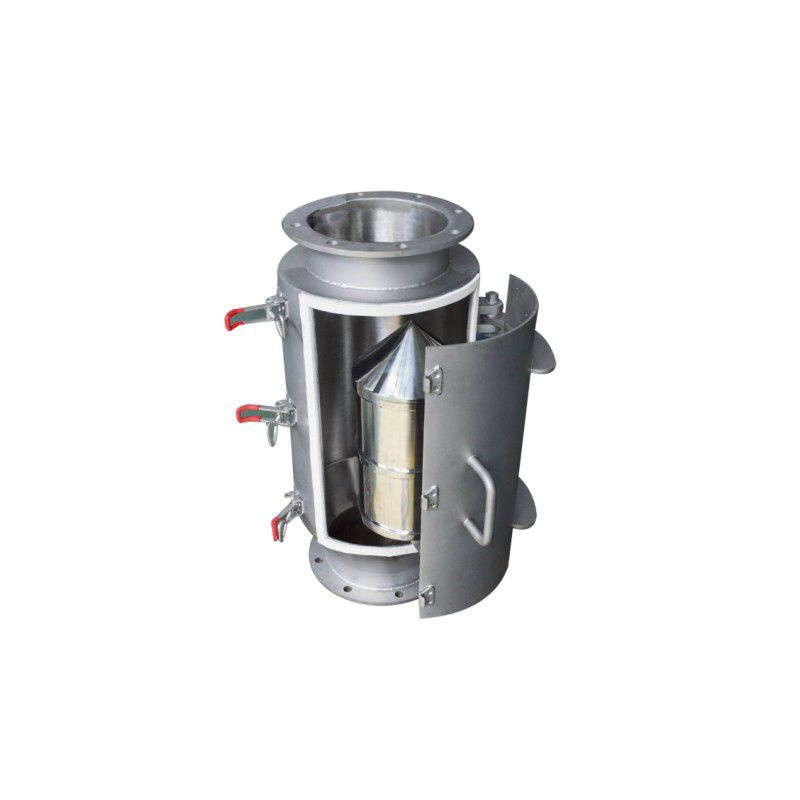

Bullet magnets Pipeline / pneumatic
A tapered magnet core in a pipe housing for pneumatic or gravity product lines. Captures tramp metal without large pressure drop when sized correctly. Common in plastics compounding and powder transfer.

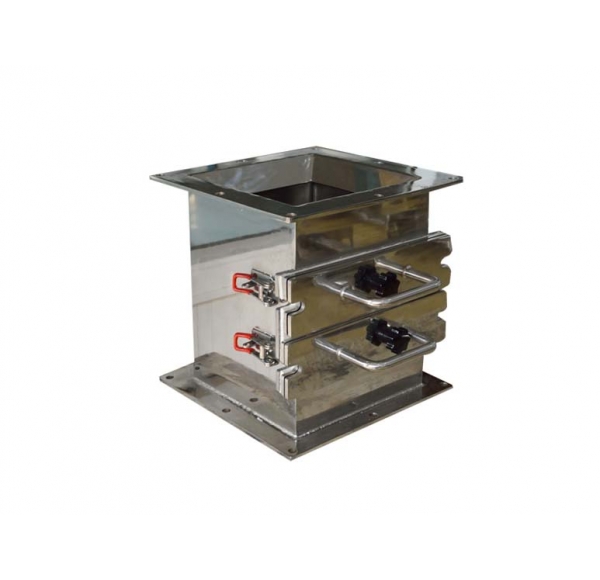

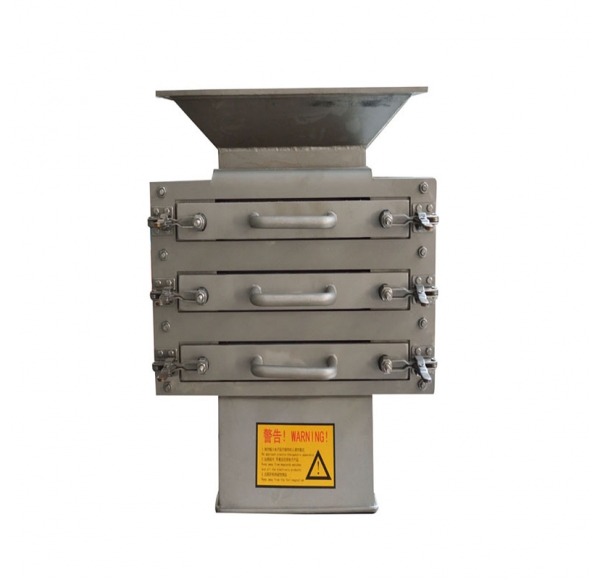

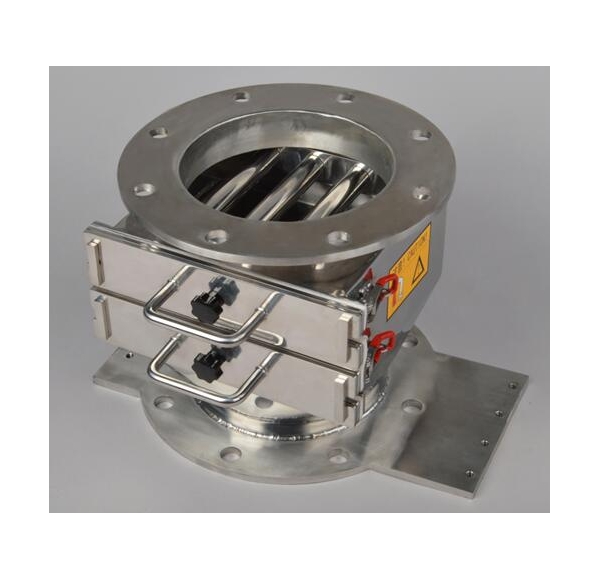

Drawer magnets Multi-row / hopper
Pull-out drawer with one or more rows of magnetic tubes under hoppers or before extruders. Good for higher throughput and staged capture. Food-grade and industrial builds available.
Magnetic pulleys Conveyor head
Replace or supplement the head pulley on a belt conveyor so ferrous is discharged below while non-magnetic product continues. Used in recycling, aggregates and scrap sorting.

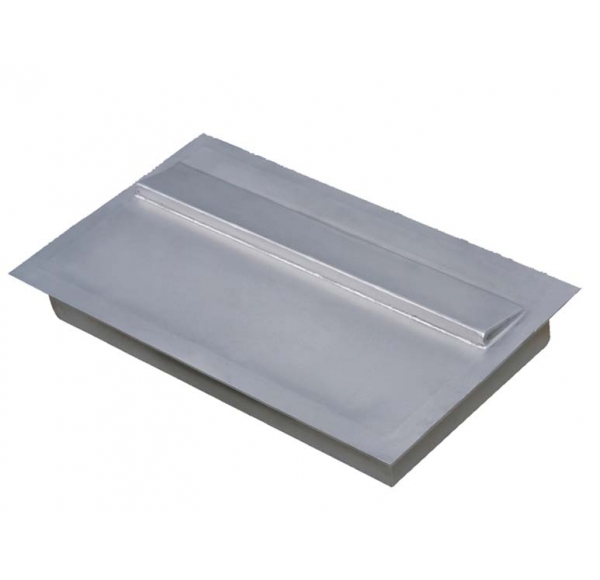

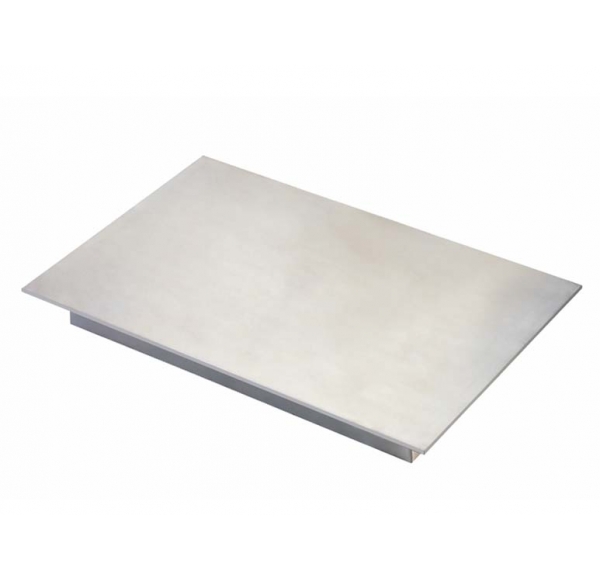

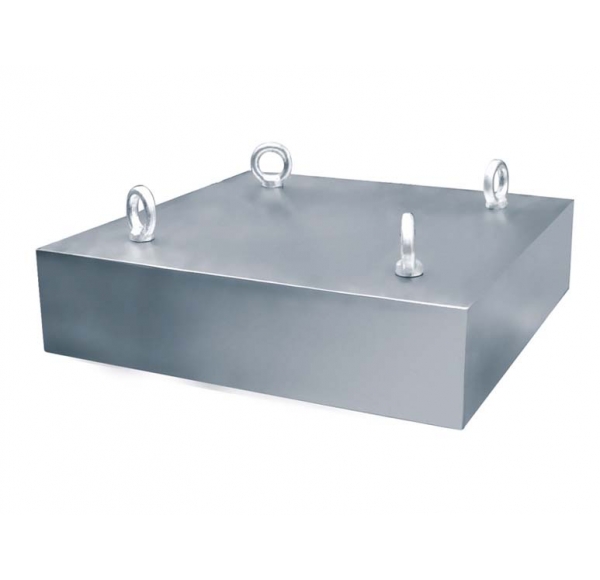

Plate magnets Chute / suspended
Flat magnet plates for chute walls or suspended above belts. Simple, rugged ferrous capture for coarse products and bulk materials.
Typical gauss ranges
Rare-earth separator designs we commonly quote for Malaysian plants sit around 10,000–13,000 gauss at the tube or pole face (application-dependent). Ceramic/ferrite options exist for coarser tramp metal at lower field — we will recommend based on contaminant and flow.
| Type | Typical use | Notes |
|---|---|---|
| Grate | Powders, food, plastics | Food-grade SS available |
| Bullet | Pneumatic / pipe lines | Size to pipe OD & velocity |
| Drawer | Hoppers, extruders | Multi-row capture |
| Pulley | Conveyor ferrous split | Belt width & tonnage needed |
| Plate | Chutes, suspended belts | Coarse tramp metal |
WhatsApp for a written quote
Include separator type preference, product, opening/pipe size, and industry. No online prices — B2B written quotes only.
WhatsApp +60 12-211 2522
